myned-ai/wav2arkit_cpu

Wav2ARKit - Audio to Facial Expression (ONNX)

A fused, end-to-end ONNX model that converts raw audio waveforms directly into 52 ARKit-compatible facial blendshapes. Based on the Facebook Wav2Vec2 and LAM Audio2Expression models, optimized for real-time CPU inference.

Features

Feature	Value
Input	Raw 16kHz audio waveform
Output	52 ARKit blendshapes @ 30fps
Inference	~45ms per second of audio
Speed	22× faster than realtime
Size	1.8 MB

Quick Start

import onnxruntime as ort
import numpy as np

# Load model
session = ort.InferenceSession("wav2arkit_cpu.onnx", providers=["CPUExecutionProvider"])

# Load audio (16kHz, mono, float32)
# Example: 1 second = 16000 samples
audio = np.random.randn(1, 16000).astype(np.float32)

# Output: (1, 30, 52) - 30 frames at 30fps, 52 blendshapes

Model Specification

Input

Name	Type	Shape	Description
audio_waveform	float32	[batch, samples]	Raw audio at 16kHz

Output

Name	Type	Shape	Description
blendshapes	float32	[batch, frames, 52]	ARKit blendshapes [0-1]

Frame Calculation

output_frames = ceil(30 × (num_samples / 16000))

Example: 1 second audio (16000 samples) → 30 frames

ARKit Blendshapes

52 blendshape indices (click to expand)

Idx	Name	Idx	Name
0	browDownLeft	26	mouthClose
1	browDownRight	27	mouthDimpleLeft
2	browInnerUp	28	mouthDimpleRight
3	browOuterUpLeft	29	mouthFrownLeft
4	browOuterUpRight	30	mouthFrownRight
5	cheekPuff	31	mouthFunnel
6	cheekSquintLeft	32	mouthLeft
7	cheekSquintRight	33	mouthLowerDownLeft
8	eyeBlinkLeft	34	mouthLowerDownRight
9	eyeBlinkRight	35	mouthPressLeft
10	eyeLookDownLeft	36	mouthPressRight
11	eyeLookDownRight	37	mouthPucker
12	eyeLookInLeft	38	mouthRight
13	eyeLookInRight	39	mouthRollLower
14	eyeLookOutLeft	40	mouthRollUpper
15	eyeLookOutRight	41	mouthShrugLower
16	eyeLookUpLeft	42	mouthShrugUpper
17	eyeLookUpRight	43	mouthSmileLeft
18	eyeSquintLeft	44	mouthSmileRight
19	eyeSquintRight	45	mouthStretchLeft
20	eyeWideLeft	46	mouthStretchRight
21	eyeWideRight	47	mouthUpperUpLeft
22	jawForward	48	mouthUpperUpRight
23	jawLeft	49	noseSneerLeft
24	jawOpen	50	noseSneerRight
25	jawRight	51	tongueOut

Usage Examples

Python with audio file

import onnxruntime as ort
import numpy as np
import soundfile as sf

session = ort.InferenceSession("wav2arkit_cpu.onnx", providers=["CPUExecutionProvider"])

# Load and resample audio to 16kHz if needed
audio, sr = sf.read("speech.wav")
if sr != 16000:
    import librosa
    audio = librosa.resample(audio, orig_sr=sr, target_sr=16000)

# Ensure mono
if len(audio.shape) > 1:
    audio = audio.mean(axis=1)

# Run inference
audio_input = audio.astype(np.float32).reshape(1, -1)
blendshapes = session.run(None, {"audio_waveform": audio_input})[0]

print(f"Duration: {len(audio)/16000:.2f}s → {blendshapes.shape[1]} frames")

C++

#include <onnxruntime_cxx_api.h>

Ort::Env env(ORT_LOGGING_LEVEL_WARNING, "Wav2ARKit");
Ort::Session session(env, L"wav2arkit_cpu.onnx", Ort::SessionOptions{});

std::vector<float> audio(16000);  // 1 second
std::vector<int64_t> shape = {1, 16000};

Ort::MemoryInfo mem = Ort::MemoryInfo::CreateCpu(OrtArenaAllocator, OrtMemTypeDefault);
Ort::Value input = Ort::Value::CreateTensor<float>(mem, audio.data(), audio.size(), shape.data(), shape.size());

const char* input_names[] = {"audio_waveform"};
const char* output_names[] = {"blendshapes"};
auto output = session.Run({}, input_names, &input, 1, output_names, 1);

JavaScript (onnxruntime-web/node)

const ort = require('onnxruntime-node');

const session = await ort.InferenceSession.create('wav2arkit_cpu.onnx');
const audioTensor = new ort.Tensor('float32', audioData, [1, audioData.length]);
const { blendshapes } = await session.run({ audio_waveform: audioTensor });

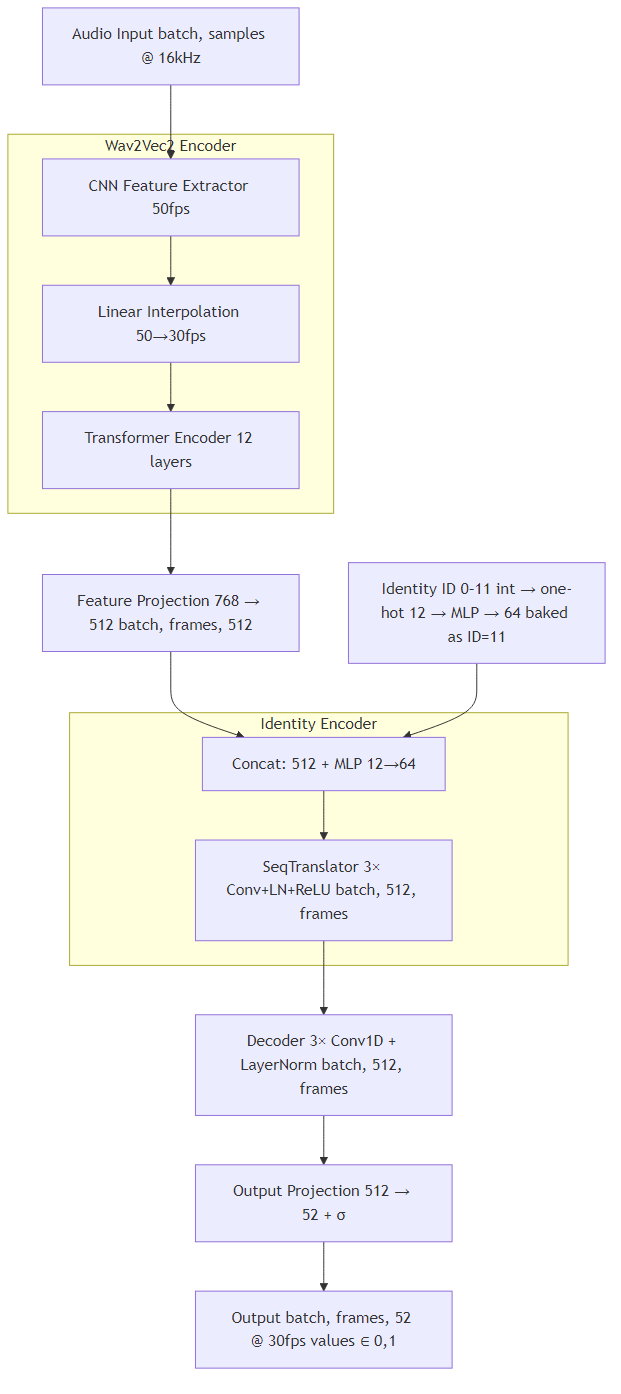

Architecture

Note: The identity encoder supports 12 speaker identities (0-11). This ONNX export uses identity 11 baked in for single-speaker inference.

License

Apache 2.0 - Based on:

• 3DAIGC/LAM_audio2exp
• facebook/wav2vec2-base-960h
